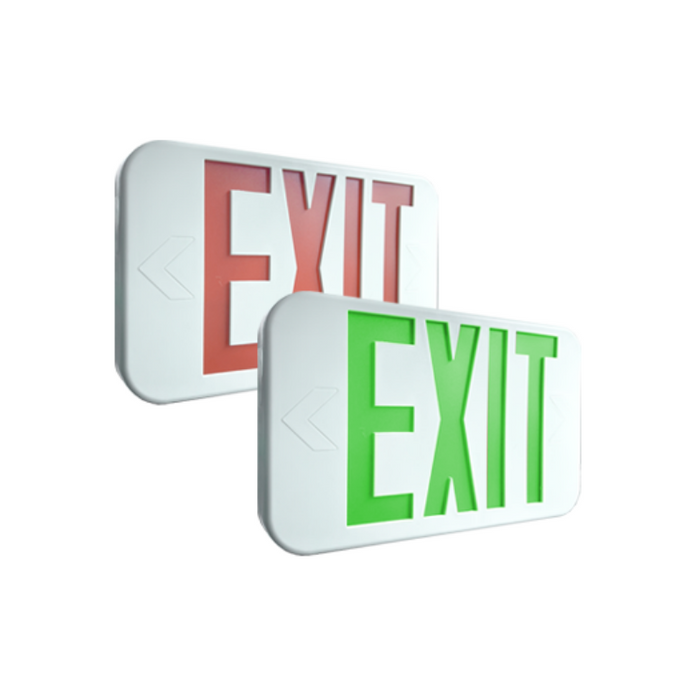

PT-EXL-2 Series Bi-Color LED Exit Sign

The PT-EXL-2 Series is a dual color (green or red) exit light featuring 90 minutes of up time during outage, is universally mountable, field adjustable for single or dual face, and complies with UL924.

Features

• Finish: White
• Letter Color: Red/Green
• Housing: ABS
• Wattage: 1W
• Voltage: 120-277V
• Battery Type: 1.2V 900mAh Nickel Cadmium
• EM Run Time: 90 mins
• Charging Time: 24 hrs
• Internal switch for selection of bi-color red/green LEDs
• The universal J-Box mounting pattern supports quick installation time. Mount directly on a wall or to a ceiling.

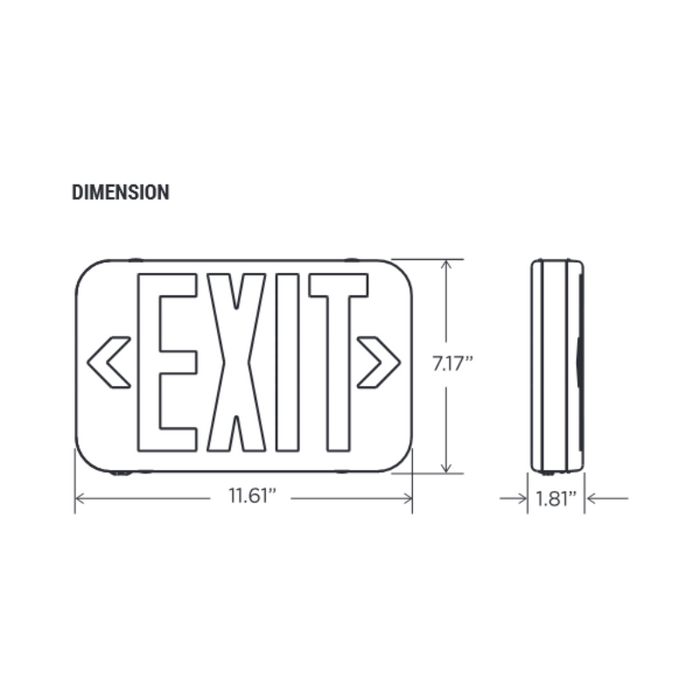

Dimensions

• Length: 11.61"
• Width: 7.17"

• Height: 1.81"


Warranty

• 5-year limited warranty on electrical parts and housing

• 3-year limited warranty on battery

Documents

• Spec Sheet
• Instruction Sheet
